This electric vehicle charging station testing equipment allows you to service and test EV Chargers deployed in public and commercial areas for electrical safety and compliance to AS3000 standards.
Instruments
Soft Carrying Bag
Instruction Manual
Key features
- Safely test the PE conductor for possible presence of dangerous voltage against earth
- Simulate various current capabilities of charging cables
- Simulate vehicle charging states
- Simulate PE error (Earth fault)
- Includes Fluke 1664 FC to perform installation tests and Type 2 connector

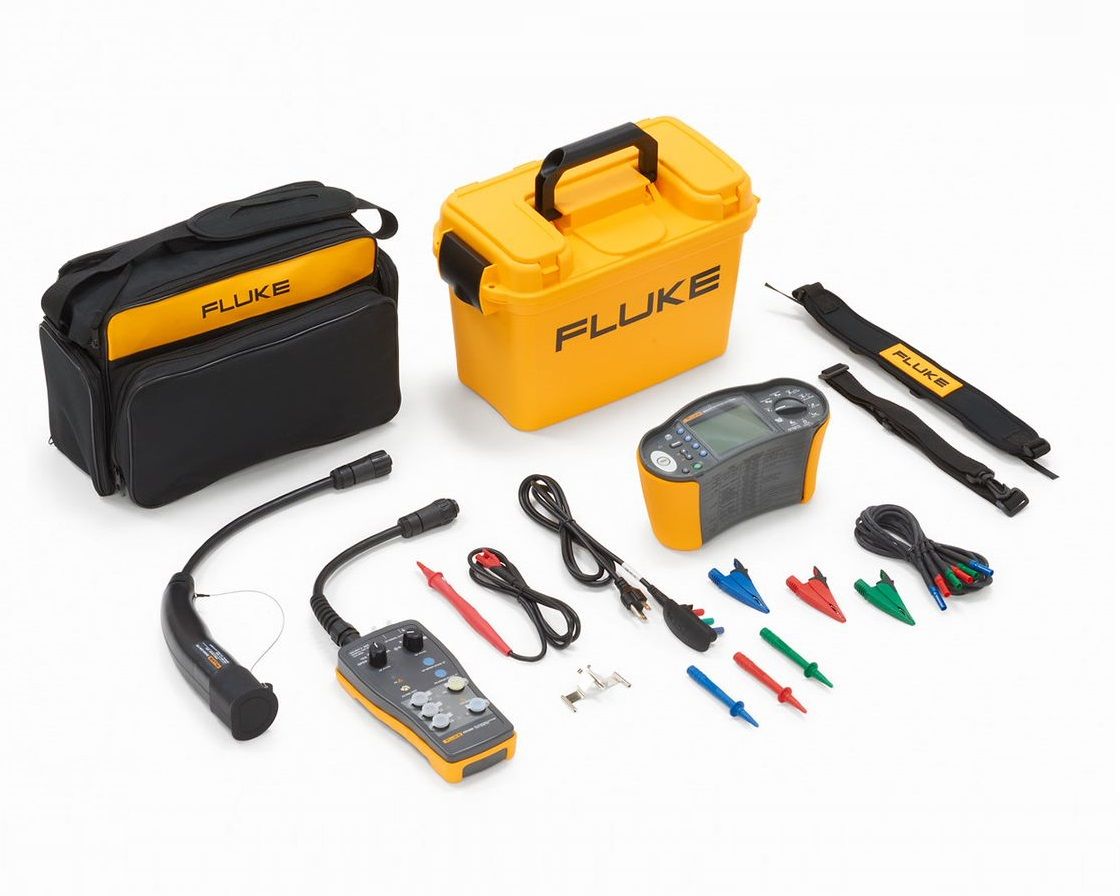

Product overview: Fluke FEV300 EV Charging Station Test Adapter Kit: 1664 FC Installation Tester and Type 2 Connector
The FEV300 with 1664 FC Multifunction Installation Tester is a complete kit designed to test the function and safety of charging stations mode 3 for AC charging. This test adapter simulates the presence of an electrical vehicle, allowing you to conduct tests in combination with the Fluke 1664 FC installation tester to quickly and efficiently test to all local regulations without opening the charging station. Use the FEV300 to verify a charging station is working properly after install, during periodic maintenance or troubleshoot a charging station if it is not delivering the appropriate charge. With the adapter kit, charging stations can be tested in accordance with IEC/EN 61851-1 and IEC/HD 60364-7-722.
Run seven installation tests in one sequence
The FEV300 PE grounding protection pre-test verifies that there is no presence of dangerous voltage at the ground terminal. Connect the 1664 FC to the FEV300 to run seven installation tests automatically in one sequence through a single connection. The 1664 FC tests to all local regulations and allows you to share test results in real time over your smartphone via Fluke Connect Measurements.
Safety, simplicity and convenience

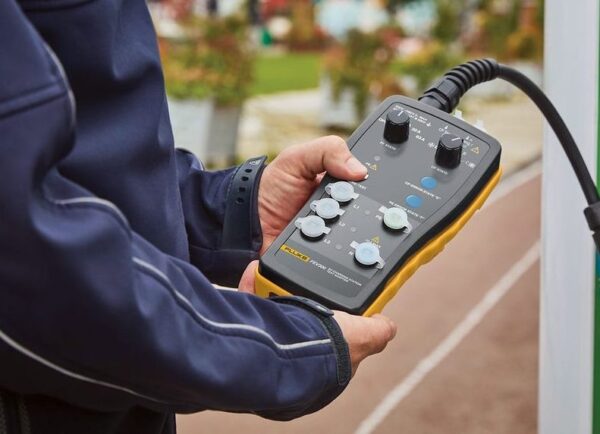

Perform a variety of tests including ground fault checks, insulation of wires, measuring voltage and duty cycle to see max current available for charging all in one adapter that safely integrates with the Fluke portfolio of test and measurement tools. There is no need to bring an electric vehicle onsite for charging station troubleshooting: the FEV300 adapter acts as an electric vehicle when connected to a charging station for easy performance and maintenance testing.
- PE Pre-Test: Safely pre-test the PE conductor for possible presence of dangerous voltage against earth

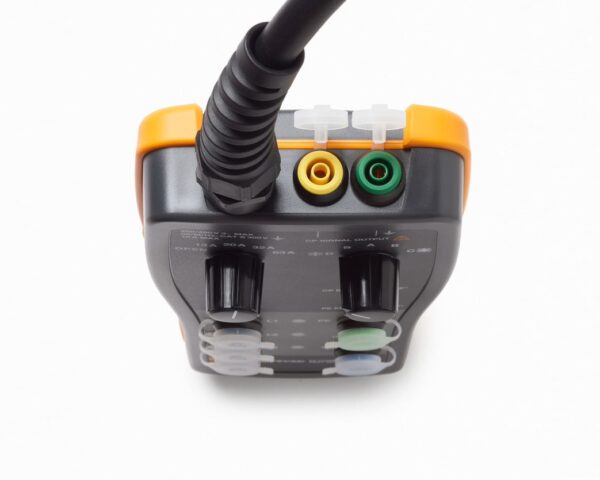

- Proximity Pilot (PP) state “Cable Simulation”: The PP State rotary switch enables the adapter to simulate various current capabilities of charging cables
- Control Pilot (CP) state “Vehicle Simulation”: Use the CP State rotary switch selector to simulate various charging states
- Simulation of CP error “E”: Simulate PE error (Earth fault)
Specifications: Fluke FEV300 EV Charging Station Test Adapter Kit: 1664 FC Installation Tester and Type 2 Connector
General features
- Input voltage Up to 250 V (single phase system) / up to 480 V (three phase system), 50/60 Hz, max 10 A
- Internal power consumption 3 W max.

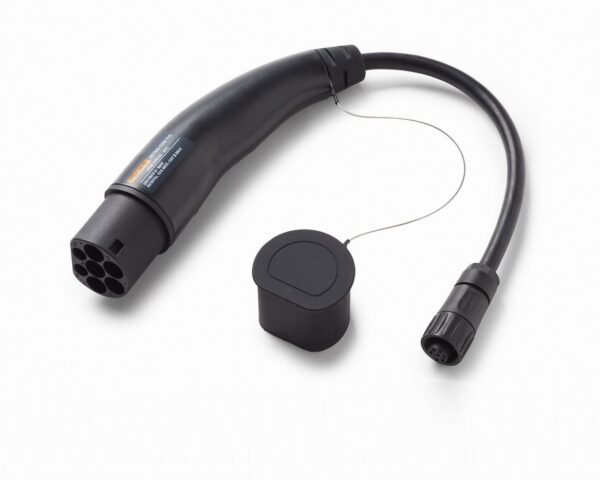

- FEV300-CON-TY2 Plug AC charging mode 3, suitable to IEC 62196-2 type 2 socket outlet or fixed cable with vehicle connector (type 2, 7P three-phase)
- Dimensions (H × W × D) 110 × 45 × 220 mm length without connection cable and test cable
- Weight Approx. 1 kg
- Safety standards IEC/EN 61010-1, pollution degree 2
- IEC/EN 61010-2-030, CAT II 300 V, protection class II
- Ingress protection IEC 60529: IP54 (housing)
- IEC 60529: IP54 (sockets with protection caps in place, connectors in connected condition or with protection caps in place, otherwise IP20)
- Operating temperature -20 °C to 40 °C
- Storage temperature -20 °C to 50 °C
- Operating humidity range 10 % to 85 % relative humidity non-condensing
- Storage relative humidity 0 % to 85 % non-condensing
- Operating altitude 2000 m max.
Functions
- PE Pre-Test Visible indication >50 V AC/DC between PE conductor and touch sensor
- PP Simulation Open, 13 A, 20 A, 32 A, 63 A
- CP States State A, B, C, D
- CP Error state “E” On/off (CP signal short-circuited to PE)
- PE Error state “F” (Earth fault) On/off (interruption of PE conductor)
- Outputs (for test purpose only)
- Measuring terminals L1, L2, L3, N, PE Max. 250/480 V, max. 10 A
- CP signal output terminals Approx. +/-12 V
- Caution: In case of wrong wiring or error of the charging station these terminals may be hazardous.
APPLICATION:
On-site testing of EVSE charging station installation.
Initial and periodic testing of private, semi-private and public EVSE charging stations.
