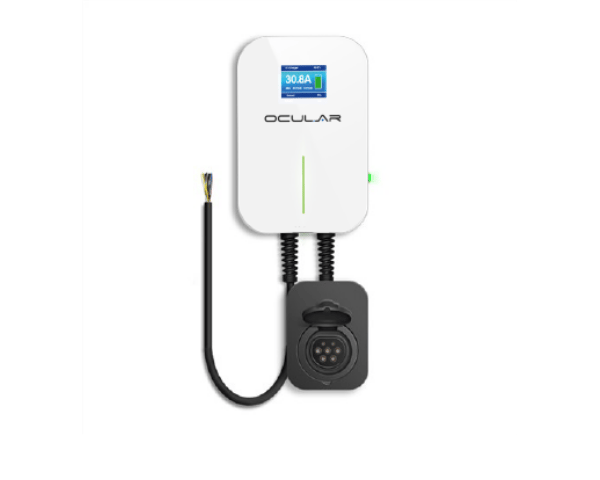

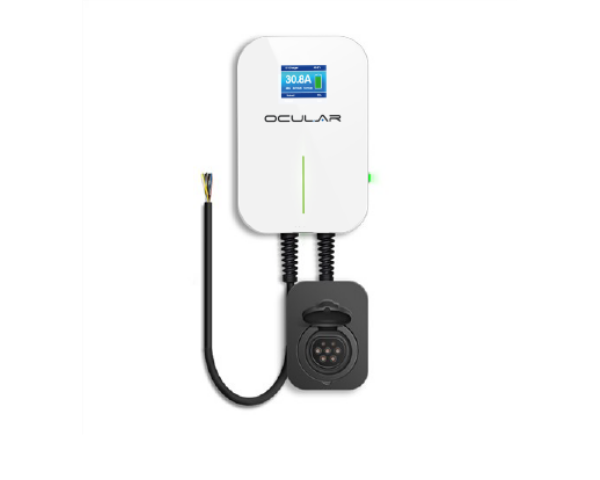

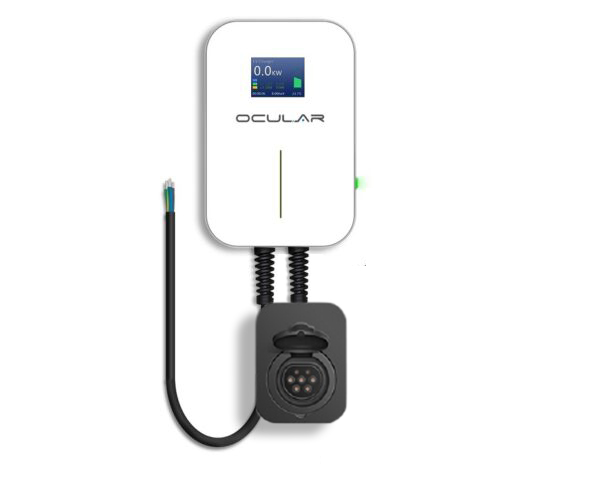

The Ocular LTE EV wallbox comes in 2 variants: Universal and Tethered.
With a colourful LCD display, users can clearly see the current charging status including charging time, voltage, current internal temperature, etc.

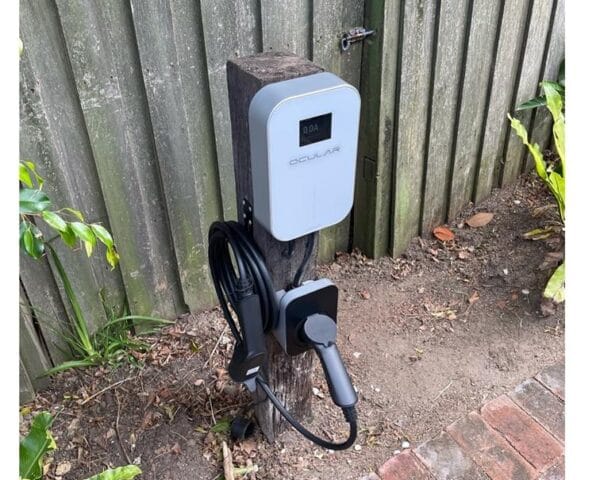

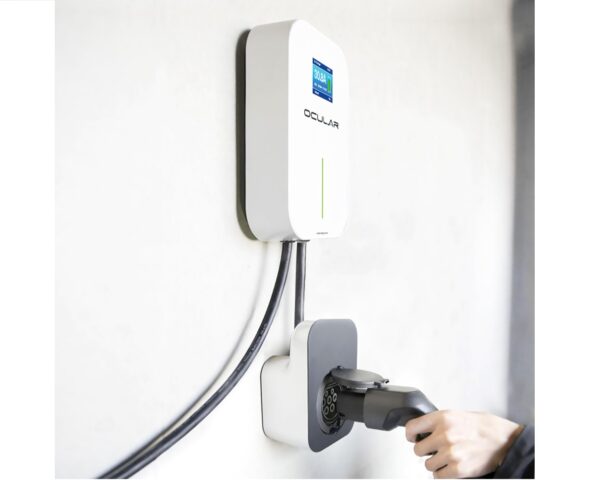

Non-hardware faults that occur during charging will be automatically fixed. Faults that require manual repair will be displayed on the LCD screen. The housing is sturdy and has an IP66 rating. It can be easily installed on the wall. The Ocular Home can also be mounted on a stand rather than a wall if that is preferred.
Ideal use is for home and light commercial applications. For more heavy duty or public applications consider the Ocular IQ Commercial range here
Input & Output
- Input voltage/Output voltage – AC 400V
- Adjustable output – 8A/15A/20A/24A/32A – Via the right hand side button – April 2022 Models and onwards
- Input frequency – 50Hz
- Max. output power – 7.4KW(1 Phase) 22kW (3 Phase)
- Max. output current – 32Amp
- Charging interface type- IEC 62196-2, SAE J1772
Protection
- Over voltage protection
- Under voltage protection
- Over load protection
- Short circuit protection
- Earth leakage protection
- Over-temp protection
- Lightning protection
Function and Accessory
- LCD – 3.5 inch
- RCD – Type A + 6mA DC
- LED Indicator light
Working environment
- Protection degree – IP66
- Environment temperature – -40 ~ +75 Degrees Celsius
- Relative humidity – 0~95%
- Cooling – Natural Air Cooling
- Standby power consumption – <8W
Mechanical
- Dimension (W/H/D) – 295/195/65mm
- Weight – 6 kg

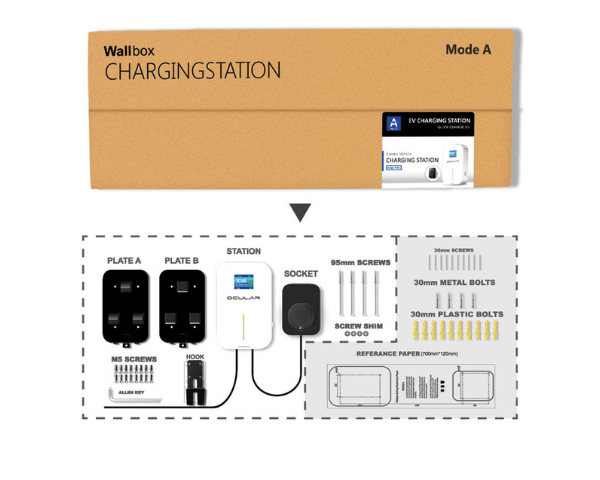

Mounting Accessories
- Wall-mounting bracket
- Ground-mounting pole (Optional)
Certificate
- CE, TUV, FCC, CSA, RoHS
Keep this in mind when installing:
For your safety, the installation must only be carried out by a licensed and qualified electrician familiar with Australian industry standards and is fully responsible for the installation.
