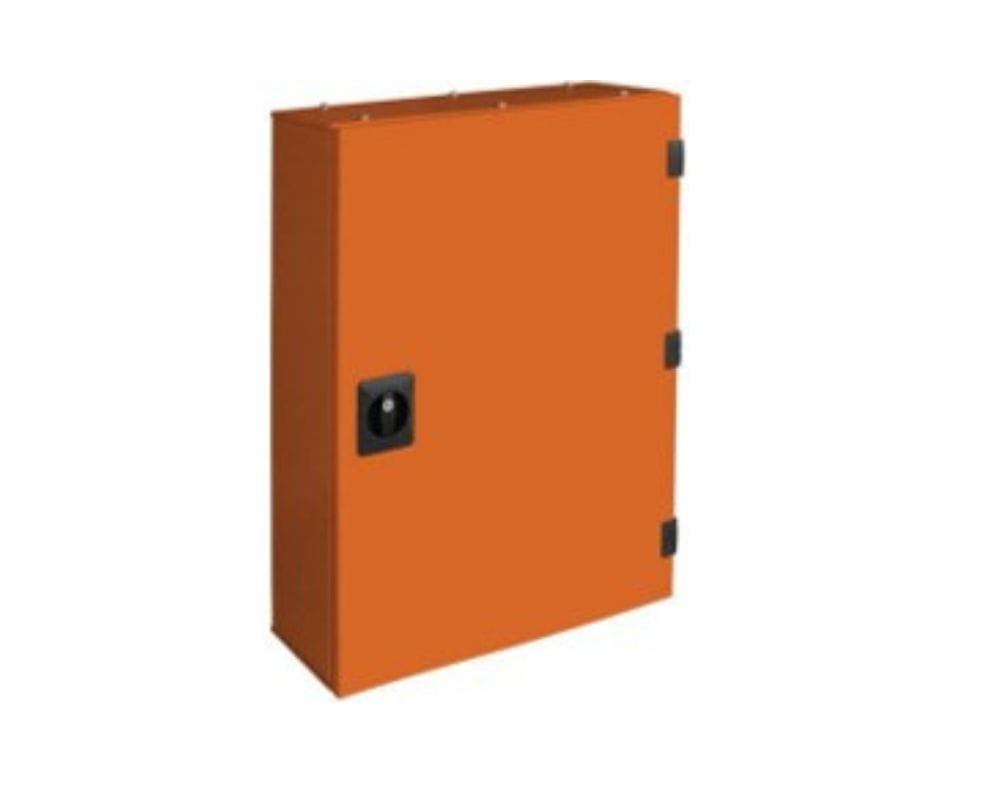

Ev Db Outdoor

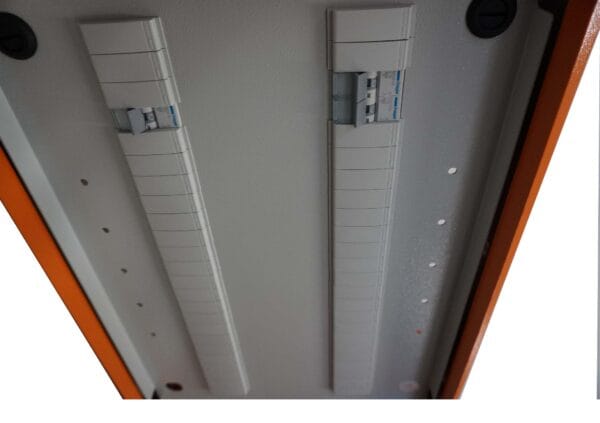

Outdoor Evdb

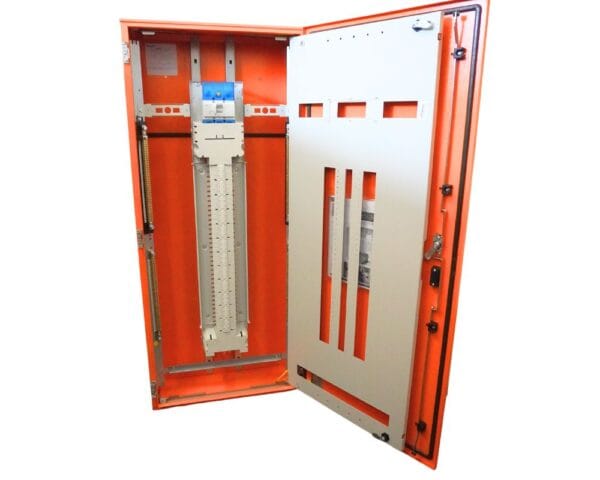

Outdoor Internal

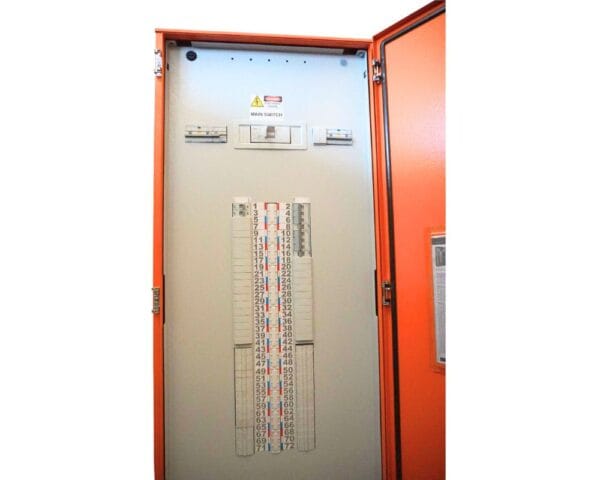

Internal Outdoor

Hager Outdoor EV-DB

Model
google-reviews
Contact Us
Availability: In Stock

QUICK OVERVIEW

Dedicated Outdoor Electric Vehicle distribution board inline with the New National Construction Code and the AS/NZ 61439-3 standard.

Suitable for all outdoor applications, rated for 250A, capable of servicing upto 24 AC single phase chargers or 18 AC three phase chargers.

Matching extension boxes available here

SKU: OC-7200COM
Shipping 3 Free Shipping Australia Wide
Warranty 3 Up to 2 Years Warranty
Shipping 3 Same Day Dispatch
Years 3 Since 2015
Description Dedicated EV-DB
Product EV-DB (Outdoor) – Orange
Poles 72 Poles Chassis + 2 x 6 pole DIN
Rails 3
Modules 36
Regulations AS/NZ 3000 | AS/NZ 61439-3
Rated Current 250A
Rated Voltage 250V
Rated Operational Voltage 415V
Rated Insulation Voltage 690V
Rated Impulse Voltage 4kV
Rated Short Circuit 20kA 0.2sec | 40kV peak
Frequency 50Hz
IK Rating IK05
IP Rating
IP66
Dimensions 1400mm (H) x 600mm (W) x 250mm (D)
Lock
Key lockable
Door Field Reversible Door
Additional Removable 24 pole DIN section on bottom – Purchased separately
Material 1.6mm Galvanised Steel
