RS-485 supports inexpensive local networks and multidrop communications links. It is generally accepted that RS-485 can be used with data rates up to 10 Mbit/s[a] or, at lower speeds, distances up to 1,200 m.
- Supports the EO Genius EV charging station and any RS485 compatible product.

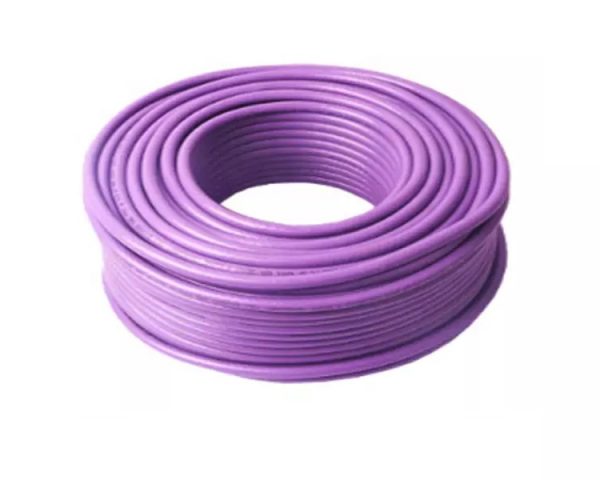

Length – 100m
NO. OF PAIRS – 2 Pair
AWG (NO. OF STRANDS) – AWG22(7)
NOMINAL DIAMETER OF STRANDS mm– 0.25
NOMINAL OVERALL DIAMETER mm- 4.25
NOMINAL WEIGHT kg/100m– 3 kg
CHARACTERISTICS
Voltage Rating
600V
Temperature Rating
Fixed: -25ºC to +75ºC

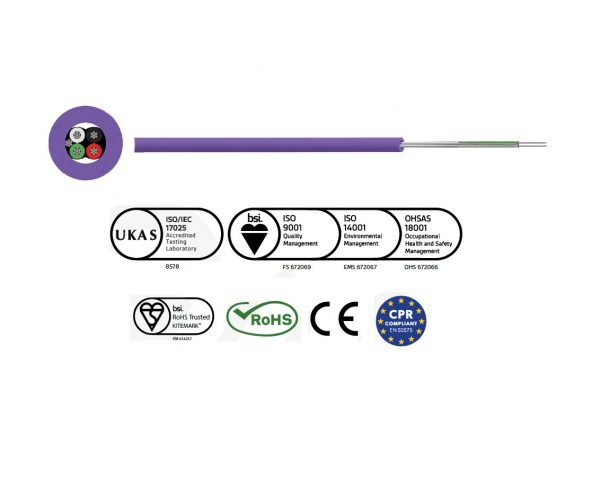

CONSTRUCTION
Conductor
Class 2 stranded tinned copper conductor
Insulation
HDPE (High Density Polyethylene)
Screen
Aluminium foil tape
Drain Wire
Stranded tinned copper
Sheath
U.V resistant LSZH (Low Smoke Zero Halogen)
Core Identification
Pair 1: Black Red
Pair 2: Green White
Sheath Colour
Violet
ISO/IEC 17025 LABORATORY TESTED
This product is subject to the Quality Assurance protocols of The Cable Lab®, an ISO/IEC 17025 accredited cable testing laboratory. Testing includes vertical
flame, conductor resistance, tensile & elongation, and dimensional consistency, verified to published standards and approved product drawings.
REGULATORY COMPLIANCE
This cable meets the requirements of the Low Voltage Directive 2014/35/EU and the RoHS Directive 2011/65/EU. RoHS compliance has been tested and
confirmed by The Cable Lab® as meeting the requirements of the BSI RoHS Trusted KitemarkTM.
ELECTRICAL CHARACTERISTICS
VELOCITY OF PROPAGATION %- 66
IMPEDANCE ohms- 45
CAPACITANCE AT 1KHZ pF/m- 115
MAXIMUM RESISTANCE OF CONDUCTOR AT 20ºC ohms/km- 54.2
