The Ocular LTE Plus EV Wallbox comes with a 6m Type 2 EV cable and Bluetooth Smartphone APP. With a colourful LCD display, users can clearly see the current charging status including charging time, voltage, current & internal temperature.
Non-hardware faults that occur during charging will be automatically fixed. Faults that require manual repair will be displayed on the LCD screen. The housing has a robust IK10 rating with a waterproof IP66 rating. It can be easily installed on the wall, with stand mounting available as well.
Ideal use is for home and light commercial applications. For more heavy duty or public applications consider the Ocular IQ Commercial range here
Function and Accessory

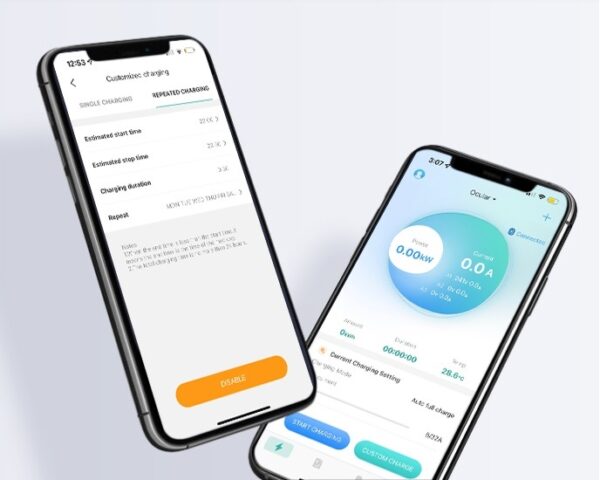

- Connectivity – Bluetooth to APP – EVSE Master
Input & Output
- Input voltage/Output voltage – AC 230V
- Adjustable output – 6A – 32A – Via Bluetooth APP
- Manual override -plug and charge via side button
- Input frequency – 50Hz
- Max. output power – 7.4KW(1 Phase)
- Max. output current – 32Amp
- Charging interface type – IEC 62196-2, SAE J1772
Protection
- Over voltage protection
- Under voltage protection
- Over load protection
- Short circuit protection
- Earth leakage protection
- Over-temp protection
- Lightning protection
Function and Accessory
- LCD – 3.5 inch
- RCD – Type A + 6mA DC
- LED Indicator light
Working environment
- Protection degree – IP66
- Environment temperature – -40 – 75 Degrees Celsius
- Relative humidity – 0-95%
- Cooling – Natural Air Cooling
- Standby power consumption – <8W
Mechanical
- Dimension (W/H/D) – 295/195/65mm
- Weight – 6 kg
Mounting Accessories
- Wall-mounting bracket
- Ground-mounting pole – Optional
Certificate
- CE, TUV, FCC, CSA, RoHS, RCM mark
Keep this in mind when installing:
For your safety, the installation must only be carried out by a licensed and qualified electrician familiar with Australian industry standards and is fully responsible for the installation.
